3D Printing for industrial strength parts

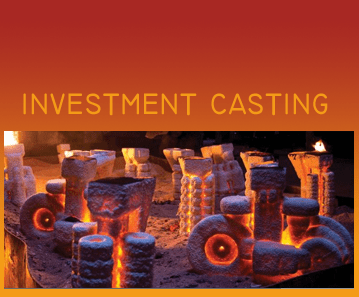

Maybe you are under the impression that affordable 3D printers can only be used to produce cheap little plastic parts. Maybe you should think again. 3D printers can easily create shapes for investment castings. The plastic is coated with a ceramic material. After multiple layers are applied, the plastic is burned out in an oven leaving a void that can be filled with metal. The ceramic makes a good finish and the technique can be used with steel, aluminum, stainless steel and many more materials.

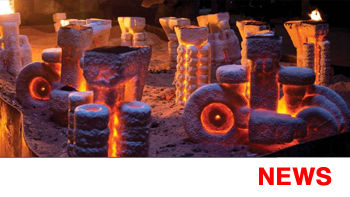

investment-casting-from-3d-printsInvestment casting at PPCP

There is even a special filament called PolyCast. It’s easy to print with the same settings as PLA. What makes it special is the limited ash left behind when it is burned out of the ceramic shell. YouTube Video: https://www.youtube.com/watch?v=4–fiBGMIpc

In my own experience: Several years ago, I reversed engineered a brass impeller that provided lube oil to a large generator-turbine unit in a power plant. The pump was printed and sent to Pennsylvania Precision Cast Parts. They added the venting and gating to the part, and the cast the part in stainless steel. It was a complicated shaped that can be done lost wax, but 3D printing made the job easier and much cheaper. After casting, the outside diameter and boring were machined ,and a keyway was added. The impeller was balanced and there were a few other trade secrets added.

The process saved time and money and the impeller has been running without issues for over a decade.

Remember this then next time someone asks, so what can you make with your 3D printer.

Polycast is available at Amazon

For more information:

3D Printing and Investment Casting Make a Perfect Fabrication Team; 3DPrint.com

ABS Juice, Glue and Slurry

MatterHackers has an DIY piece on how to mix and use ABS solutions: Use the ABS Juice for better bonding to the print surface, ABS Glue is a better alternative to super glue and hide those seams with ABS Slurry.

Update 4/24/2019 (WARNING): I got a part so stuck to the table that I damaged the coating on my Prusa I3 MK2 table.

abs-juice-glue-slurry

Link: http://www.matterhackers.com/news/how-to-make-abs-juice-glue-and-slurry
